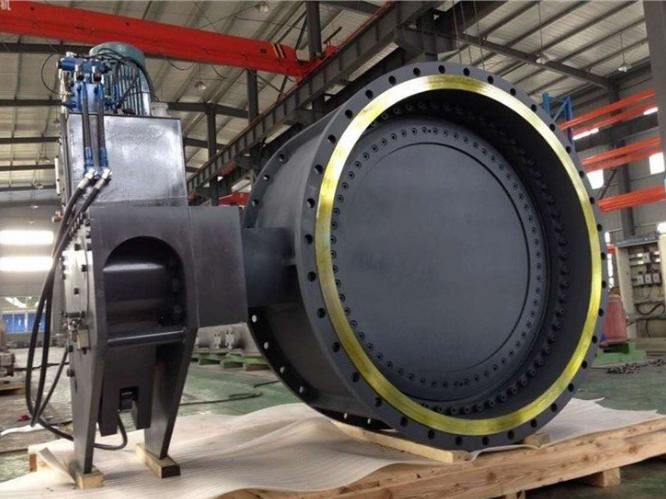

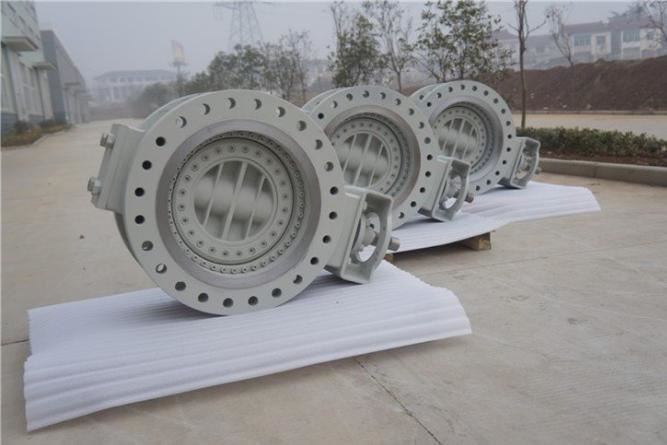

Uch tomonlama ofsetli ko'p tarmoqli kapalak klapan
Hajmi: | NPS 2"~60" | Bosim darajasi: | Sinf 150 ~ 600 |
Material: | WCB, WCA, WCC, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, DI, CF3M, CN7M, CF8C va boshqalar | Dizayn va ishlab chiqarish standarti: | API 609, ASME B16.34, BSEN 593 |
Yuzma-yuz: | API 609, BSEN 558 | Flanesli o'lcham: | ASME B16.5, ASME B16.47, BSEN 558 |
Sinov va tekshirish: | API 598, BSEN 12266 | Operatsion usuli: | Qo'llanma, chuvalchang mexanizmi, elektr aktuator, pnevmatik aktuator |
Yangi lotereyaKo'p darajali uch ofset eksantrik kelebek klapan, elektr bilan ishlaydigan ish
Standart
1. Dizayn standarti: API609
2. Material bosimi-Harorat standarti: ASME B16.34
3. Yuzma-yuz o'lcham standarti:
a) ISO5752 13 asosiy seriyali gardish qisqa namunasi
b) Flanesli shlyuz valfi uchun ASME B16.10 ga uzun gardish namunasi
4. Flange ends dimension standard: ≤24inch to ASME B16.5. >ASME B16.47 B seriyali 24 dyuym.
5. Tekshirish standarti: API598
Issiq teglar: uch tomonlama ofset ko'p tutqichli kelebek klapan, Xitoy, ishlab chiqaruvchilar, zavod, moslashtirilgan, ulgurji, narx, arzon, stokda, sotuvda, bepul namuna
