Xususiyatlari va afzalliklari

TIPBV Double Offset Butterfly Valve - bu suv tozalash inshootlari, quvurlar, nasos stantsiyalari va sanoat sharoitlarida yuqori ishlash uchun mo'ljallangan mustahkam va ishonchli moslashuvchan o'rindiqli, ikki tomonlama ofset valf. Ushbu yuqori spetsifikatsiyali valf payvandlangan korpus o'rindig'i, innovatsion quruq milya va termoyadroviy bog'langan epoksi qoplamasi bilan ishlash uchun qurilgan.

AWWA Standard C504 ga to'liq mos keladi:

Barcha TIPBV er-xotin eksantrik kapalak klapanlari AWWA C504 ga mos keladi va kam e'tibor yoki texnik xizmat ko'rsatish zarurati bilan uzoq xizmat qilish uchun mo'ljallangan. S zanglamaydigan po'latdan yasalgan vallar korroziyaga chidamli. Chevro n V-Tipi qadoqlash klapanning xizmat muddatini sozlashsiz ishlatish uchun ishlatiladi.

Past moment:

The thrust bearing assembly and leveler screw (pro vided on valves of 24" and larger) assures balance and centers the disc for minimum disc seat wear wit hout galling, providing constant low torque requirem ents.

Dala almashtiriladigan kauchuk o'rindiq:

Maxsus aralashtirilgan Buna N o'rindig'i zanglamaydigan po'latdan yasalgan sferik disk chetiga to'liq 360 daraja muhrlaydi. Noyob yivli{1}}o‘rindiq dizayni diskning keng, sharsimon shakldagi o‘tiradigan qirrasi bilan birgalikda diskning yopilishiga tolerantlikni oshirish imkonini beradi (o‘choqsiz yopiq holatda markazdan 1 darajagacha). O'rindiq metall jihozlarsiz korpusga quyma epoksi birikmasi bilan mexanik ravishda mahkamlanadi, bu esa o'rindiqning bir xil kontakt bosimi bilan diskning aniq radiusiga mos kelishini ta'minlaydi. U to'liq maydonda sozlanishi va almashtirilishi mumkin.

Xizmat qulayligi:

Double Ofset dizayni noldan minimal parvarishlashni talab qiladi. Rulman qopqog'i foydalanuvchiga quvur liniyasini suvsizlantirmasdan qurtlarni olib tashlashga imkon beradi. Muhrni almashtirish yoki ta'mirlash bo'lsa, uni epoksi in'ektsiyasi yoki ixtisoslashgan texnik talab qilmasdan, umumiy asboblar yordamida dalada bajarish mumkin.

Tarkibi va afzalliklari

Dizayn standarti

Valf dizayni:

EN593/AWWA C504

Yuzma-yuz:

EN558-1 / ANSI B16.10

Oxirgi gardish ulanishi:

EN1092/ANSI B16.47/ANSI B16.5

Yuqori gardish ulanishi:

ISO 5211

Turi		Yumshoq muhr eksantrik kelebek vana			AWWAC504 kapalak vana
Nominal diametri (DN/dyuym)		600-3000	100-2600	100-1200	3"-72"
Nominal bosim (PN/PSI)		0.6	1 0	1.6	150PSI
Sinov bosimi	Muhrlash	0.66	11	1.76	165 PSI
	Shell	0.9	1 5	2.4	225PSI
Ishlash harorati (daraja)		-10-80			-10-80
Tegishli ommaviy axborot vositalari		Chuchuk suv, kanalizatsiya, dengiz suvi va boshqalar.

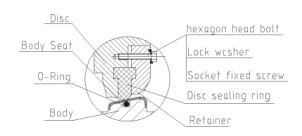

Plomba tuzilishi va xususiyatlari

Texnik spetsifikatsiya

•"n" type stainless steel ring inlaid in valve body, can rust proof permanently, and also prevent the vibration caused by unstable water flow speed and the valve failure caused by fastener loosen and fallen down, improve adaptability of bad condition

•"n" type stainless steel ring underside adopt ring belt, O type sealing saved material and simple process, greatly reduce product cost

•"T" type disc rubber as main seal ring ,reaches bi-direction seal, prevent from force falling in on-off operation

•Available with lock washer and set screw, ensure disc pressure ring in right position

Asosiy qismlar Materiallar

Yo'q,	Ism	Material
	Bushing	ZCuZn38Mn2Pb2, F4 tayanch po'lat
2	Pastki sha	304 416 420 431
3	Disk	QT450-10 A536 65-45-12
4	Konusli pin	304 416 420 431
5	Top sha代	304 416 420 431
6	Tana	HT200 A126ClassB QT450-10 A536 65-45-12
7	Qadoqlash	NBR EPDM
8	Tutuvchi	QT450-10 A536 65-45-12 Q235-A Gr33
9	Diskni muhrlash halqasi	NBR EPDM
10	Korpus po'lat uzuk	316
11	Muhrlash halqasi	NBR EPDM

Javob: Tana

Yuqori quvvatli materiallardan tayyorlangan, ozgina deformatsiya, yomon ish sharoitlariga moslash.

B: Korpusni yopish rishtasi

Zanglamaydigan po'latdan yasalgan sızdırmazlık halqasi, korpusda ajralmas prokat, yuqori aniqlik, -eskilishga chidamli, uzoq xizmat muddati.

C: Disk muhrlash halqasi:

T tipidagi muhrlangan kauchuk halqa, qoliplangan shaklni birlashtirish, yuqori aniqlik, ikki tomonlama muhrga yetib borish.

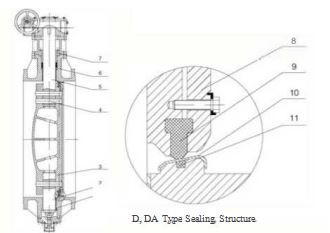

D, DA tipidagi muhrlanish tuzilishi

E: konusli pin

Yuqori aniqlik, milni disk bilan samarali ulang

F: PIN-Muhrlash halqasi

Konusning pinini ishonchli tarzda mahkamlang, tushishini oldini oling,

G: qadoqlash bezi

Yuqori milning sobit holatiga etib boring va muhr halqasini mahkamlang.

H: O-Ring

Multipleks.-Halqalar novda uchi oqishi oldini oladi.

Men: Bushing

Yog 'va kichik ishqalanish koeffitsienti materialidan tayyorlangan, milni qo'llab-quvvatlaydi va aylanish momentini kamaytiradi.

J: mil

Yuqori quvvatli zanglamaydigan po'latdan yasalgan mil torkni samarali etkazib berishi mumkin.

K: Kir yuvish mashinasi

Shina halqasi va milning yelkasining eskirishini oldini oling, aylanish momentini kamaytiring va milning to'g'ri holatda ekanligiga ishonch hosil qiling.

L: O-Ring

Oqishning oxirini samarali tarzda oldini oling.

M: Pastki qopqoq

Qo'llab-quvvatlovchi shnurli halqa orqali diskning tushishini oldini oling va sızdırmazlık o'tkazuvchanligini ta'minlang.

N: Splint uzuk

Milni to'g'ri holatda ekanligiga ishonch hosil qiling.

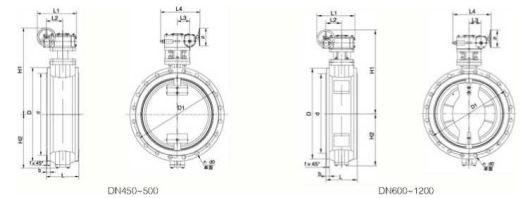

Umumiy o'lchamlar va og'irliklar

PN10 (birlik: mm, kg)

DN	Vites operatori	L	D	D1	d	n	d0	b	f	H1	H2	L1	L2	L3	L4	0	Og'irligi
100	XJ24	127	220	180	156	8	19	19	3	310	109	52	45	158	210	150	19
150	XJ24	140	285	240	211	8	23	19	3	440	143	52	45	158	210	150	37
200	XJ30	152	340	295	266	8	23	20	3	510	182	77	63	238	315	300	51
250	XJ30	165	395	350	319	12	23	22	3	565	219	77	63	238	315	300	68
300	4022	178	445	400	370	12	23	24.5	4	630	244	95	72	167	242	300	93
350	4023	190	505	460	429	16	23	24.5	4	715	283	110	91	188	275	400	122
400	4023	216	565	515	480	16	28	24.5	4	750	312	110	91	188	275	400	152

PN10 (birlik: mm, kg)

DN	Vites operatori	L	D	D1	d	n	d0	b	f	H1	H2	L1	L2	L3	L4	0	Og'irligi
450	4024	222	615	565	530	20	28	25.5	4	820	344	473	147	109	420	400	182
500	4024	229	670	620	582	20	28	26.5	4	845	381	473	147	109	420	400	230
600	4025	267	780	725	682	20	31	30	5	950	451	533	179	138	476	400	388
700	4025	292	895	840	794	24	31	32.5	5	1010	526	533	179	138	476	400	480
800	4026	318	1015	950	901	24	34	35	5	1140	581	655	217	170	577	500	661
900	4026	330	1115	1050	1001	28	34	37.5	5	1197	643	655	217	170	577	500	813
1000	4026	410	1230	1160	1112	28	37	40	5	1277	722	655	217	170	577	500	1018
1200	4027	470	1455	1380	1328	32	40	45	5	1511	840	748	262	202	664	500	1501

Umumiy o'lchamlar va og'irliklar

PN6/PN10 (birlik: mm, kg)

Bosim	DN	Vites operatori	D	D1	d	b	f	n-d0	L	H1	H2	L1	L2	L3	L4	L5	0	A	4-S	B	E	F	h	Og'irligi
PN10	1400	4028	1675	1590	1530	46	5	36-43	530	1750	1150	884	334	305	238	790	500	310	33	1500	1360	1590	960	2895
	1600	4028	1915	1820	1750	49	5	40-49	600	1870	1305	884	334	305	238	790	500	340	33	1600	1460	1700	1050	3655
	1800	4028.5	2115	2020	1950	52	5	44-49	670	2125	1425	977	357.5	323	281	855	600	450	36	1900	1740	1990	1200	5210
	2000	4029	2325	2230	2150	55	5	48-49	760	2280	1580	1059	397.5	345	307.5	903	600	480	36	2000	1850	2100	1323	6721
	2200	4029.5	2550	2440	2370	58	6	52- 56	580	2520	1710	1222	436	437.5	365.5	1075	800	400	36	2030	1830	2150	1410	7658
	2400	40210	2760	2650	2570	62	6	56-56	750	2760	1880	1303	476	480	410.5	1191	800	490	45	2310	2120	2460	1470	10350
	2600	40211	2960	2850	2780	66	6	60-56	900	3120	2010	1744	605	612	521	2024	1000	650	45	2400	2210	2540	1650	13708
PN6	1400	4027	1630	1560	1510	38	5	36-37	530	1695	1150	748	262	259	202	664	500	310	33	1500	1360	1590	960	2623
	1600	4028	1830	1760	1710	40	5	40-37	600	1870	1305	884	334	305	238	790	500	340	33	1600	1460	1700	1050	3559
	1800	4028	2045	1970	1918	42	5	44-40	670	2015	1425	884	334	305	238	790	500	450	36	I860	1700	I960	1180	4615
	2000	4028.5	2265	2180	2125	45	5	48-43	760	2235	1580	977	357.5	323	281	855	600	480	36	I960	1810	2060	1303	6162
	2200	4029	2475	2390	2335	48	6	52-43	580	2380	1710	1059	397.5	345	307.5	903	600	400	36	1970	1770	2090	1380	6735
	2400	4029.5	2685	2600	2545	52	6	56-43	750	2720	1880	1222	436	437.5	365.5	1075	800	490	45	2310	2120	2460	1470	9586
	2600	4029.5	2905	2810	2750	54	6	60-49	900	2870	2010	1222	436	437.5	365.5	1075	800	650	45	2400	2210	2540	1650	12387
	2800	40210	3115	3020	2960	56	6	64-49	1000	3035	2050	1303	476	480	4105	1191	800	860	45	2540	2300	2700	1760	14238
	3000	40211	3315	3220	3160	60	6	68-49	1000	-	2300	1744	605	612	521	2024	1000	860	45	2650	2520	2920	1840	-

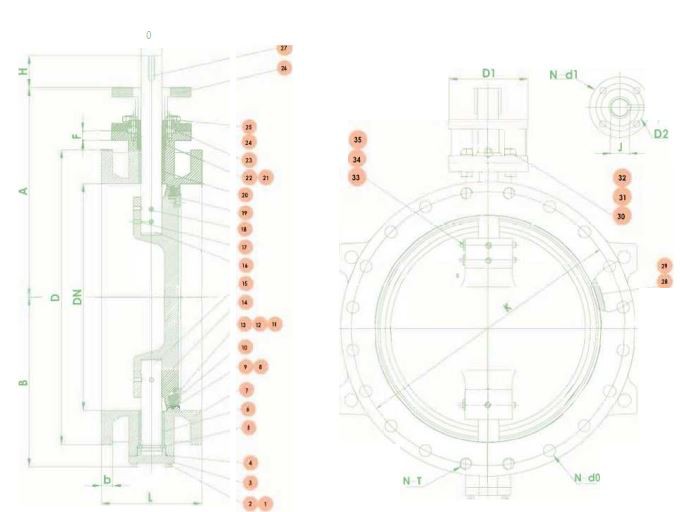

AWWA C504 Butterfly Valve uchun asosiy qismlar materiallari

YO'Q.	NAME	QTY	MATERIAL	ESLATMA
1	Bahor qistirmalari	8	304
2	Olti burchakli murvat	8	304
3	Pastki qopqoq	1	ASTMA536
4	Pastki qopqoq muhri	1	EPDM	NBR
5	Bisektli uzuk	1	304
6	Pastki bushing	1	316 plyus TEFLON
7	Tana	1	ASTMA536
8	Tana muhri	1	EPDM	NBR
9	Tana muhrlangan po'lat uzuk	1	316L
10	Disk muhri	1	EPDM	NBR
11	Olti burchakli murvat	40	304
12	Tashqi qistirmali qistirma	1	304
13	Ichki olti burchakli tekis uchini mahkamlash vinti	20	304
14	Disk	1	ASTMA536
15	Pastki mil	1	SS304
16	Yuqori mil	1	SS304
17	Rper oxirgi vint	3	SS304
18	TaperPin	3	304

2.	NAME	QTY	MATERIAL
19	Bosim halqasi	1	304
20	Yuqori buta	1	316 plyus TEFLON
21	Qadoqlash halqasi	1	304
22	O-ring	4	EPDM(NBR)
23	Qadoqlash bezi	1	ASTMA536
24	Olti burchakli yong'oq	2	304
25	Ikki tomonlama tirgaklar	2	304
26	Ulanishni qo'llab-quvvatlash	1	ASTMA536
27	Umumiy tekis kalit	2	45
28	Yorliq	1	H62
29	Perchinni belgilang	4	304
30	Olti burchakli murvat	8	304
31	Olti burchakli yong'oq	8	304
32	Bahor qistirmalari	8	304
33	Konusli pinli qistirma	3	304
34	Olti burchakli yong'oq	3	304
35	Bahor qistirmalari	3	304
